TBM Tunneling in Saudi Arabia: Complete Guide to Tunnel Boring Machine Technology
Tunnel construction has evolved significantly over the past few decades, and one of the most advanced methods used today is TBM tunneling. A Tunnel Boring Machine (TBM) allows for the excavation of underground tunnels with high precision, safety, and efficiency—making it an essential technology in modern infrastructure projects.
In Saudi Arabia, where rapid urbanization and mega projects are transforming the landscape, TBM tunneling plays a crucial role in delivering large-scale underground works. From metro systems to water transmission tunnels, this technology is shaping the Kingdom’s future.

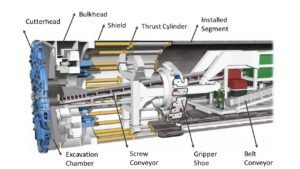

What is a TBM (Tunnel Boring Machine)?
A Tunnel Boring Machine (TBM) is a sophisticated piece of equipment used to excavate tunnels through various types of soil and rock. It replaces traditional drilling and blasting methods with a continuous, mechanized process.
TBMs are designed to:
- Excavate soil or rock
- Support the tunnel structure
- Install lining segments simultaneously
This results in faster, safer, and more accurate tunnel construction.
Types of TBM Machines
Different ground conditions require different types of TBMs:
1. Earth Pressure Balance (EPB) TBM
- Used in soft ground conditions
- Maintains pressure at the tunnel face to prevent collapse
2. Slurry TBM
- Ideal for sandy or water-bearing soils
- Uses slurry to stabilize the tunnel face
3. Hard Rock TBM
- Designed for tunneling through solid rock
- Uses disc cutters for excavation
4. Mixed Shield TBM
- Handles mixed ground conditions
TBM Tunneling in Saudi Arabia
Saudi Arabia has adopted TBM technology in major infrastructure projects across cities like Riyadh, Jeddah, and Dammam.
Key Drivers:
1. Vision 2030 Projects
Mega developments such as NEOM require extensive underground infrastructure, including tunnels for transport and utilities.
2. Metro Systems
Urban transit systems rely heavily on TBM tunneling for underground rail networks.
3. Water Infrastructure
Large-scale tunnels for water supply and drainage systems.
Applications of TBM Tunneling
1. Metro and Railway Tunnels
TBMs are widely used for underground transportation systems.
2. Water and Sewer Tunnels
Large-diameter tunnels for water distribution and wastewater management.
3. Road Tunnels
Used in mountainous or congested urban areas.
4. Utility Tunnels
Housing pipelines, cables, and other utilities.
5. Hydropower and Industrial Projects
Supporting energy and industrial infrastructure.
Advantages of TBM Tunneling
1. High Safety
Minimizes risk compared to drilling and blasting.
2. Precision
Laser-guided systems ensure accurate alignment.
3. Minimal Surface Disruption
Ideal for urban environments.
4. Faster Construction
Continuous operation increases productivity.
5. Environmental Benefits
Reduced noise, vibration, and dust.
TBM Tunneling Process
1. Planning and Design
- Geological surveys
- Tunnel alignment design
2. TBM Assembly
- Machine assembled at the launch shaft
3. Excavation
- TBM advances while excavating soil or rock
4. Segment Installation
- Precast concrete segments installed to form tunnel lining
5. Breakthrough
- TBM reaches the destination shaft
6. Finishing Works
- Installation of utilities and systems
Role of Contractors in TBM Projects
TBM tunneling requires highly specialized contractors with expertise in:
- Machine operation
- Geotechnical engineering
- Tunnel design and construction
- Safety management
In Saudi Arabia, general contractors like DTC General Contracting play an important role in supporting large infrastructure and civil works associated with TBM projects.
TBM Tunneling vs Pipe Jacking and Microtunnelling
| Feature | TBM Tunneling | Pipe Jacking / Microtunnelling |
|---|---|---|
| Diameter | Large (metro, road tunnels) | Small to medium pipelines |
| Operation | Manned or automated | Fully remote-controlled |
| Applications | Transport, utilities | Pipelines |
| Cost | Higher | Moderate |
| Complexity | Very high | High |
Challenges in TBM Tunneling
1. High Cost
TBMs are expensive to manufacture and operate.
2. Complex Logistics
Transporting and assembling TBMs requires careful planning.
3. Geological Uncertainty
Unexpected ground conditions can cause delays.
4. Skilled Workforce
Highly trained engineers and operators are essential.
TBM Technology Trends
1. Automation and AI
Real-time monitoring and predictive maintenance.
2. Smart Sensors
Improved accuracy and safety.
3. Sustainable Tunneling
Energy-efficient machines and reduced waste.
4. Hybrid TBMs
Capable of handling multiple ground conditions.
TBM Tunneling in Eastern Province
The Eastern Province, including Al Khobar and Jubail, is witnessing growing demand for underground infrastructure.
Key Uses:
- Industrial tunnels
- Utility corridors
- Water and wastewater systems
TBM tunneling contractors Saudi Arabia, tunnel boring machine services Saudi Arabia, TBM contractors Riyadh Jeddah Dammam, underground tunnel construction companies Saudi Arabia, TBM tunneling for metro projects KSA, large diameter tunnel boring contractors Saudi Arabia, TBM tunneling services Eastern Province KSA, tunnel construction contractors Saudi Arabia TBM, TBM excavation services for water tunnels Saudi Arabia, TBM tunneling contractors for NEOM projects, underground infrastructure contractors Saudi Arabia TBM, tunnel boring machine contractors Dammam Khobar, TBM tunneling companies for industrial projects KSA, advanced TBM tunneling solutions Saudi Arabia
Future of TBM Tunneling in Saudi Arabia
The future of TBM tunneling is extremely promising due to:
- Expansion of metro systems
- Growth of smart cities
- Increasing demand for underground utilities
- Focus on sustainable construction
Saudi Arabia is expected to become a regional leader in advanced tunneling technologies.
TBM tunneling is a cornerstone of modern infrastructure development in Saudi Arabia. Its ability to deliver safe, precise, and efficient underground construction makes it indispensable for large-scale projects.
With mega developments underway and cities expanding rapidly, the demand for TBM technology will continue to grow. Companies like DTC General Contracting are well-positioned to support these developments through their expertise in infrastructure and project execution.
