Steel Structure Fireproof Paint: Protecting Steel Elements from Fire Hazards

Steel Structure Fireproof Paint: Protecting Steel Elements from Fire Hazards

Steel structures are widely used in industrial and commercial buildings, particularly in warehouses, factories, and large-scale infrastructures. While steel is known for its strength and durability, it is not naturally fire-resistant. When exposed to high temperatures, steel can lose its structural integrity, which could lead to catastrophic failure during a fire. To mitigate this risk, steel elements in buildings need to be treated with fireproof coatings, often referred to as fireproof paint. This specialized paint helps to enhance the fire resistance of the steel, providing critical protection during the crucial early stages of a fire.

In this article, we will explore steel structure fireproof paint and the application process for achieving varying levels of fire resistance—1 hour, 2 hours, and 3 hours. We will also highlight the differences in installation for each level of fire resistance and discuss the materials used in Saudi Arabia, with a focus on the services provided by DTC – Dorar Tammam, one of the leading companies in the region specializing in fireproofing services.

What is Fireproof Paint for Steel Structures?

Fireproof paint, or intumescent paint, is a specialized coating that is applied to steel surfaces to increase their fire resistance. Upon exposure to heat, the paint expands and forms a thick insulating layer, which helps to protect the steel from the high temperatures of a fire. This protective layer delays the rise in temperature on the steel surface, allowing more time for evacuation, fire control, and minimizing the chances of structural collapse.

There are various types of fireproof paint, and their performance is categorized by the amount of time they can resist fire without compromising the integrity of the structure. The most common ratings are 1-hour, 2-hour, and 3-hour fire resistance ratings, which reflect how long the steel will maintain its structural integrity during a fire.

The Application Process for Fireproof Paint

The method of application of fireproof paint depends on the required fire resistance level. Below, we provide a detailed explanation of how fireproof paint is installed for steel structures in warehouses and factories in Saudi Arabia, focusing on achieving 1-hour, 2-hour, and 3-hour fire resistance ratings.

1. Preparation of Surface

Before applying fireproof paint, it is essential to properly prepare the surface of the steel. The surface must be cleaned of any dirt, oil, grease, rust, or other contaminants that could hinder paint adhesion. Typically, this involves:

• Cleaning: Using solvents or high-pressure washing to remove contaminants.

• Surface Treatment: Abrasive blasting or sanding to achieve a rough surface profile for better adhesion.

• Priming: A primer coat is applied to the steel to further improve adhesion and ensure a smooth application of the fireproof paint.

2. Application for 1-Hour Fire Resistance

For steel elements that need to achieve 1-hour fire resistance, the application process is relatively straightforward. The fireproof paint typically has a lower thickness requirement compared to 2-hour or 3-hour ratings.

• Coating Thickness: Usually, a thickness of around 0.8 mm to 1.0 mm of fireproof paint is sufficient to achieve a 1-hour fire resistance.

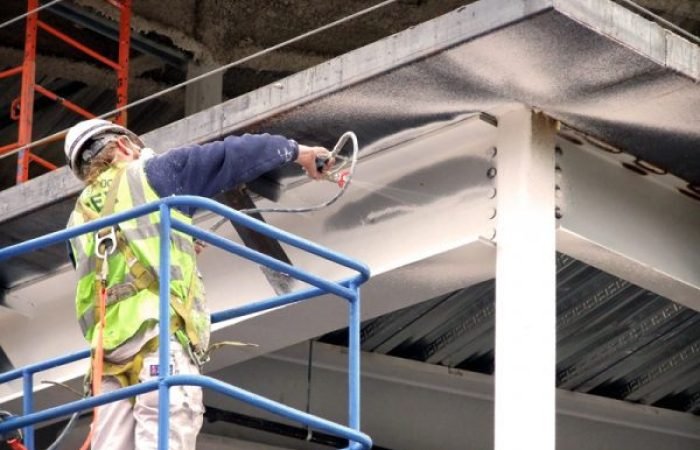

• Application Method: The fireproof paint is usually applied using a spray or brush method. For larger areas, spraying is the most common technique.

• Drying Time: After the application, the paint must be allowed to cure for a specified period before subjecting it to any stress or impact.

3. Application for 2-Hour Fire Resistance

For a 2-hour fire resistance, the application method is similar to the 1-hour rating but requires thicker layers of fireproof paint to provide the added protection.

• Coating Thickness: For a 2-hour rating, the fireproof paint needs to be applied at a thickness of approximately 1.2 mm to 1.5 mm.

• Layering: Multiple coats may be required, and each coat must be allowed to dry properly before the next one is applied.

• Drying Time: As the layer thickness increases, the drying time may also extend. It’s important to ensure that the entire surface is properly cured to avoid issues with adhesion.

4. Application for 3-Hour Fire Resistance

Achieving 3-hour fire resistance demands even thicker layers of fireproof paint and meticulous application.

• Coating Thickness: For a 3-hour rating, a thickness of approximately 1.8 mm to 2.0 mm is required, depending on the product used.

• Layering Process: A more detailed, layered approach is necessary. The application involves multiple coats, with each layer being given adequate drying time to ensure proper bonding and insulation properties.

• Drying Time: The curing process for 3-hour rated coatings can take longer, and it is critical that each coat is thoroughly dried before applying the next one.

Differences in Installation

• Material Thickness: The most significant difference between the installation methods for 1-hour, 2-hour, and 3-hour fire resistance is the thickness of the coating applied. A 3-hour rated coating requires a thicker layer of paint compared to a 1-hour or 2-hour rating.

• Curing and Drying: The thicker the coating, the longer the drying and curing process. This is particularly crucial for the 3-hour rating.

• Number of Coats: For higher fire resistance ratings, more coats of fireproof paint may be required. The application of multiple coats ensures that the paint performs as expected in the event of a fire.

Sources of Materials in Saudi Arabia

In Saudi Arabia, the construction and industrial sectors are booming, leading to a high demand for fireproofing solutions. Several companies in the region specialize in supplying and applying fireproof paint for steel structures. Among them, DTC – Dorar Tammam stands out as one of the top companies in the country.

DTC offers high-quality fireproof coatings that comply with international fire protection standards. Their team of professionals is skilled in applying fireproof paint to various types of steel structures in warehouses, factories, commercial buildings, and industrial sites. DTC ensures that the fireproofing materials used are sourced from reputable manufacturers, offering a reliable, long-lasting solution to protect steel structures from fire hazards.

Conclusion

Fireproof paint is an essential protective measure for steel structures in industrial buildings. By applying coatings with varying thicknesses, it is possible to achieve different levels of fire resistance, such as 1-hour, 2-hour, or 3-hour ratings. The application process involves meticulous preparation and the correct layering of paint to ensure optimal performance during a fire. Companies like DTC – Dorar Tammam offer expert installation services and supply high-quality fireproof coatings, ensuring the safety and longevity of steel structures in Saudi Arabia.

Whether for a warehouse, a factory, or any other steel-structured building, investing in fireproof paint is a proactive step towards safeguarding lives and property in the event of a fire.
