Pipe Jacking & Trenchless Technology in Saudi Arabia
A Strategic Infrastructure Solution by DTC General Contracting
1. Introduction
Saudi Arabia is undergoing one of the most ambitious infrastructure transformations in the world. Driven by Vision 2030, the Kingdom is investing heavily in smart cities, industrial zones, transportation networks, and utility systems. These developments require extensive underground infrastructure—including pipelines for water, sewage, oil & gas, power, and telecommunications.
Traditionally, underground utilities were installed using open-cut excavation. However, this method presents significant challenges in modern urban environments, including traffic disruption, environmental impact, and damage to existing infrastructure. As a result, trenchless technologies—particularly pipe jacking and microtunneling—have emerged as the preferred construction methods.
At the forefront of this transformation is DTC General Contracting, a trusted provider of advanced trenchless solutions in Saudi Arabia. With expertise in Horizontal Directional Drilling (HDD), pipe jacking, and underground pipeline systems, DTC delivers efficient, safe, and environmentally responsible infrastructure solutions across the Kingdom.
2. Understanding Trenchless Technology
Trenchless technology refers to a group of construction methods used to install underground utilities with minimal or no surface excavation. These methods are designed to reduce disruption to roads, buildings, and natural environments.

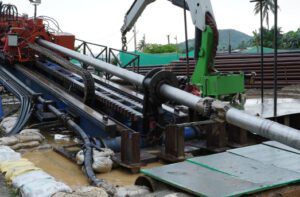

One of the most widely used trenchless methods is Horizontal Directional Drilling (HDD), which allows pipelines and conduits to be installed along a guided underground path without disturbing the surface.
Key Trenchless Methods:
- Horizontal Directional Drilling (HDD)
- Pipe Jacking
- Microtunneling
- Auger Boring
- Thrust Boring
These methods are particularly valuable in Saudi Arabia, where urban density, industrial infrastructure, and environmental considerations demand innovative construction approaches.
3. What is Pipe Jacking?
Pipe jacking is a trenchless construction method used to install pipelines underground by pushing prefabricated pipes through the ground using hydraulic jacks.
Unlike HDD, which uses a drilled bore path, pipe jacking involves constructing a tunnel where the pipe itself acts as a structural lining.
Key Components:
- Launch shaft (jacking pit)
- Reception shaft
- Hydraulic jacking system
- Tunnel boring machine (TBM) or microtunneling machine

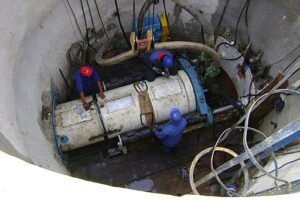

How Pipe Jacking Works:
- Excavation of a launch shaft
- Installation of jacking frame and equipment
- Boring machine advances through soil
- Pipes are pushed forward using hydraulic force
- Process continues until reaching the exit shaft
This method is ideal for:
- Large-diameter pipelines
- Sewer systems
- Stormwater drainage
- Utility crossings beneath roads and railways
4. Microtunneling and Its Role
Microtunneling is an advanced form of pipe jacking that uses a remotely controlled, guided boring machine for high-precision tunneling.
This method is particularly suitable for:
- Deep installations
- High groundwater conditions
- Urban areas requiring high accuracy
Microtunneling systems ensure precise alignment and minimal deviation, making them ideal for critical infrastructure projects.
5. Growth of Trenchless Technology in Saudi Arabia
Saudi Arabia has become a major hub for trenchless construction due to several key factors:
5.1 Rapid Urbanization
Cities like Riyadh, Jeddah, Dammam, and Al Khobar are expanding rapidly, requiring extensive underground utility networks.
5.2 Mega Projects
Projects such as NEOM, The Line, and the Red Sea Project demand advanced infrastructure solutions that minimize environmental impact.
5.3 Industrial Expansion
The oil & gas and petrochemical sectors require reliable underground pipeline systems.
5.4 Environmental Considerations
Trenchless methods reduce:
- Land disturbance
- Carbon emissions
- Impact on ecosystems
5.5 Traffic and Infrastructure Constraints
Busy highways and urban centers cannot accommodate large-scale excavation, making trenchless solutions essential.
As a result, trenchless construction methods like HDD and pipe jacking are becoming standard practice in the Kingdom.
6. Advantages of Pipe Jacking & Trenchless Methods
6.1 Minimal Surface Disruption
Trenchless methods allow construction beneath roads, railways, and buildings without disturbing surface activities.
6.2 Cost Efficiency
Although initial setup costs may be higher, overall project costs are reduced due to:
- Faster completion
- Less restoration work
- Reduced labor
6.3 Environmental Protection
Trenchless construction minimizes damage to:
- Landscapes
- Water bodies
- Vegetation
6.4 Safety
Reduced excavation lowers the risk of accidents and utility damage.
6.5 Precision and Quality
Modern equipment ensures accurate installation and long-term durability.
7. Applications in Saudi Arabia
Pipe jacking and trenchless technologies are widely used across multiple sectors:
7.1 Water & Sewer Infrastructure
- Gravity sewer systems
- Stormwater drainage
- Water transmission pipelines
7.2 Oil & Gas Industry
- Pipeline crossings under highways
- Industrial utility corridors
- Offshore and coastal crossings
7.3 Telecommunications
- Fiber optic cable installation
- Data network expansion
7.4 Power & Energy
- Electrical conduits
- Substation connections
7.5 Urban Development
- Smart city infrastructure
- Underground utility corridors
These applications highlight the versatility and importance of trenchless solutions in Saudi Arabia’s development.
8. Challenges in Pipe Jacking Projects
Despite its advantages, pipe jacking presents several challenges:
8.1 Ground Conditions
Saudi Arabia’s geology includes:
- Sand
- Clay
- Limestone
- Rock formations
Each requires specialized equipment and techniques.
8.2 Groundwater
High water tables can complicate tunneling operations.
8.3 Alignment Accuracy
Maintaining precise alignment is critical, especially in long-distance installations.
8.4 Equipment and Expertise
Pipe jacking requires advanced machinery and skilled operators.
8.5 Logistics
Transporting and assembling large equipment in urban areas can be challenging.
9. Role of DTC General Contracting
DTC General Contracting is a leading provider of trenchless solutions in Saudi Arabia, delivering high-quality infrastructure services across multiple sectors.
9.1 Expertise in Trenchless Technologies
DTC specializes in:
- Horizontal Directional Drilling (HDD)
- Pipe jacking
- Microtunneling
- Underground pipeline installation
9.2 Engineering Excellence
DTC provides comprehensive services including:
- Route design and planning
- Geotechnical analysis
- Equipment selection
- Execution and monitoring
9.3 Advanced Equipment
The company utilizes modern drilling rigs, guidance systems, and tunneling machines to ensure precision and efficiency.
9.4 Compliance and Safety
DTC adheres to:
- Saudi regulations
- International standards
- HSE requirements
A structured method statement ensures safe and controlled execution of trenchless works.
10. DTC’s Approach to Pipe Jacking Projects
DTC follows a systematic approach to ensure successful project delivery:
10.1 Planning & Design
- Site surveys
- Utility mapping
- Bore path design
- Risk assessment
10.2 Site Preparation
- Shaft construction
- Equipment mobilization
- Safety setup
10.3 Execution
- Controlled boring operations
- Continuous monitoring
- Hydraulic pipe jacking
10.4 Quality Control
- Alignment verification
- Material inspection
- Performance testing
10.5 Completion & Restoration
- Site reinstatement
- Documentation
- Final inspection
11. Integration with HDD and Other Methods
DTC combines pipe jacking with other trenchless methods such as HDD to deliver optimal solutions depending on project requirements.
HDD is particularly effective for:
- Long-distance crossings
- Curved alignments
- Smaller diameter pipelines
Pipe jacking is ideal for:
- Large diameter pipelines
- Gravity systems
- High-precision tunneling
This integrated approach allows DTC to handle diverse project conditions efficiently.
12. Case Applications in Saudi Arabia
Trenchless technologies have been successfully applied across the Kingdom:
- Pipeline crossings under major highways in Dammam
- Sewer systems in urban developments
- Fiber optic installations in Jeddah
- Industrial pipelines in the Eastern Province
These projects demonstrate the effectiveness of trenchless methods in complex environments.
13. Future of Trenchless Technology in Saudi Arabia
The future of trenchless construction in Saudi Arabia is highly promising.
Key Trends:
- Increased adoption in mega projects
- Integration with smart city infrastructure
- Use of advanced digital monitoring systems
- Growth in sustainable construction practices
As infrastructure demands continue to rise, trenchless technology will play a critical role in delivering efficient and resilient underground networks.
14. Why Choose DTC General Contracting?
DTC stands out as a trusted partner for trenchless construction due to:
- Proven experience in Saudi Arabia
- Advanced equipment and technology
- Skilled engineering team
- Strong safety record
- Commitment to quality and sustainability
With a strong presence in the Eastern Province, including Dammam and Al Khobar, DTC is well-positioned to support major infrastructure projects across the Kingdom.
Pipe jacking and trenchless technologies are transforming the way underground infrastructure is built in Saudi Arabia. By minimizing surface disruption, reducing environmental impact, and improving efficiency, these methods have become essential for modern construction.
As the Kingdom continues to develop its cities, industries, and utilities, the demand for advanced trenchless solutions will only grow.
