HDD Horizontal Drilling Method: A Modern Solution for Underground Infrastructure in Saudi Arabia

HDD horizontal drilling method is one of the most advanced trenchless technologies used for underground infrastructure development in Saudi Arabia, and DTC delivers this modern solution to enable safe, efficient, and minimally disruptive installation of pipelines and utilities across the Kingdom.

Saudi Arabia’s rapid urban growth, industrial expansion, and infrastructure modernization require construction methods that protect existing assets, reduce surface disruption, and ensure long-term system reliability. Traditional open-cut excavation is often impractical in congested cities, industrial zones, highways, and environmentally sensitive areas. As a result, the HDD horizontal drilling method has become a preferred approach for installing underground pipelines, conduits, and utility services.

The Eastern Province, especially Dammam and Al Khobar, is a major center for HDD applications due to dense infrastructure networks, industrial facilities, and continuous utility upgrades.

At DTC, we specialize in delivering HDD horizontal drilling solutions in Saudi Arabia, supporting infrastructure, utility, and industrial projects with precision-engineered trenchless drilling services. This comprehensive guide explains the HDD horizontal drilling method, how it works, where it is applied, and why it has become a modern solution for underground infrastructure in the Kingdom.

Understanding the HDD Horizontal Drilling Method

The HDD horizontal drilling method—commonly referred to as Horizontal Directional Drilling (HDD)—is a trenchless construction technique used to install underground pipelines, ducts, and cables along a pre-designed curved path. Unlike traditional excavation, HDD allows utilities to be installed beneath obstacles without disturbing the surface.

The HDD method is widely used for:

• Water transmission pipelines

• Sewer and drainage systems

• Oil and gas pipelines

• Electrical and telecommunications conduits

• Industrial utility services

In Saudi Arabia, HDD has become an essential method for infrastructure projects requiring minimal disruption, high accuracy, and enhanced safety.

Why the HDD Horizontal Drilling Method Is Gaining Popularity in Saudi Arabia

Saudi Arabia’s construction environment presents unique challenges that make HDD especially effective.

Key Drivers for HDD Adoption

• Dense urban development

• High-traffic road and highway networks

• Industrial and oil & gas facilities

• Environmental protection requirements

• Limited right-of-way availability

The HDD horizontal drilling method enables projects to progress efficiently while preserving surface infrastructure and minimizing community impact.

Core Principles of the HDD Horizontal Drilling Method

The HDD method is based on three core principles:

1. Steerable drilling along a designed bore path

2. Continuous tracking and control of the drill head

3. Trenchless installation of the product pipe

These principles allow precise underground installations over long distances and complex alignments.

How the HDD Horizontal Drilling Method Works: Step-by-Step

To understand the HDD horizontal drilling method, it is essential to examine its execution stages.

Step 1: Project Planning and Engineering

HDD success begins with detailed planning.

Planning Activities Include

• Topographic and geotechnical surveys

• Identification of existing underground utilities

• Bore path design and alignment

• Selection of drilling equipment and tools

At DTC, HDD planning is performed by experienced engineers to ensure safety and accuracy.

Step 2: Site Preparation and Rig Setup

Before drilling begins:

• Entry and exit points are prepared

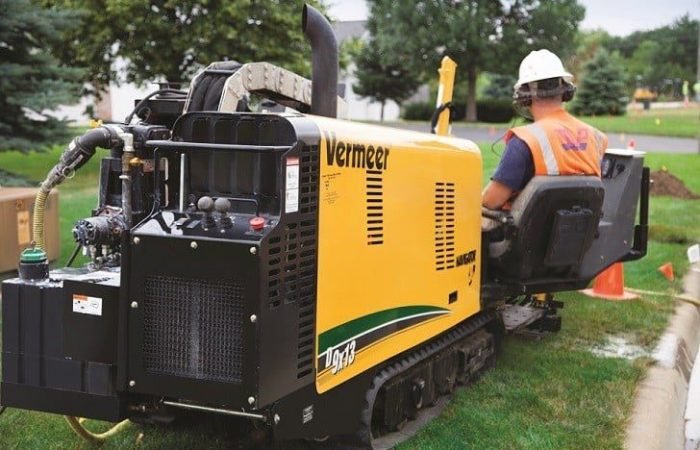

• HDD rig is positioned and aligned

• Drilling fluid systems are set up

Proper site preparation ensures stable and controlled drilling operations.

Step 3: Pilot Hole Drilling

The pilot hole defines the final bore path.

Pilot Drilling Process

• A steerable drill bit is advanced into the ground

• Directional adjustments are made using the drill head

• Drilling fluid stabilizes the bore and removes cuttings

• Real-time tracking monitors depth and alignment

Accuracy during pilot drilling is critical to overall project success.

Step 4: Steering and Guidance Control

The HDD method relies on precise guidance systems.

Common Tracking Technologies

• Walk-over locating systems

• Wireline steering systems

• Gyroscopic navigation systems

DTC selects the most appropriate guidance system based on bore length, depth, and site conditions.

Step 5: Hole Enlargement (Reaming)

Once the pilot hole reaches the exit point, the bore is enlarged.

Reaming Process

• A reamer tool is attached to the drill string

• The reamer is pulled back while rotating

• Multiple reaming passes may be performed

Reaming creates a smooth, stable bore suitable for pipe installation.

Step 6: Pipe or Conduit Installation

After reaming, the product pipe is installed.

Installation Method

• Pipes are welded or joined on site

• The pipe string is attached to the drill string

• Controlled pullback installs the pipe through the bore

Drilling fluid reduces friction and protects the pipe during installation.

Step 7: Completion and Site Restoration

Upon completion:

• Entry and exit pits are backfilled

• Surfaces are reinstated

• Drilling fluids are managed responsibly

HDD leaves minimal surface impact compared to open-cut methods.

Types of Projects Using the HDD Horizontal Drilling Method

The HDD method is used across multiple sectors in Saudi Arabia.

Utility and Municipal Infrastructure

HDD enables installation of:

• Water supply pipelines

• Sewer and stormwater systems

• Power and telecom ducts

Oil, Gas, and Energy Projects

HDD is commonly used for:

• Pipeline crossings beneath roads and pipelines

• Utility corridors within industrial facilities

Industrial and Commercial Developments

Factories and industrial plants use HDD for:

• Process pipelines

• Underground utilities

• Cable routing

Road, Highway, and Railway Crossings

HDD allows installations without disrupting traffic or operations.

Advantages of the HDD Horizontal Drilling Method

Minimal Surface Disturbance

Reduced Environmental Impact

Enhanced Safety

High Installation Accuracy

Faster Project Execution

These advantages make HDD a modern and sustainable solution for underground infrastructure.

HDD Horizontal Drilling Method vs Traditional Excavation

Ground Conditions and HDD Suitability in Saudi Arabia

Saudi Arabia presents varied ground conditions:

• Sandy soils

• Clay formations

• Limestone and rock

The HDD horizontal drilling method can be adapted to different soil types through proper tooling and drilling fluid management.

Safety and Environmental Considerations

HDD projects must comply with:

• Saudi HSE regulations

• Environmental protection standards

• Utility authority requirements

DTC prioritizes safety and environmental responsibility in all HDD operations.

Common Challenges in HDD Horizontal Drilling Projects

Bore Deviation

Drilling Fluid Loss

Ground Instability

Pipe Stress During Pullback

DTC mitigates these challenges through planning, skilled operators, and real-time monitoring.

Why DTC Is a Trusted Provider of HDD Horizontal Drilling in Saudi Arabia

• Strong presence in Dammam and Al Khobar

• Experienced HDD engineers and operators

• Modern drilling rigs and guidance systems

• Compliance with Saudi regulations

• Proven track record in infrastructure projects

DTC delivers HDD solutions with precision and reliability.

Role of HDD in Saudi Arabia’s Infrastructure Development

HDD supports:

• Urban infrastructure expansion

• Industrial growth

• Smart city development

• Sustainable construction practices

Trenchless drilling is essential for modern infrastructure networks.

Future Outlook for the HDD Horizontal Drilling Method

As Saudi Arabia continues to expand underground utility networks, HDD will play an increasingly important role in:

• Reducing surface congestion

• Protecting existing infrastructure

• Accelerating project delivery

Strategic Closing: Advancing Underground Infrastructure with the HDD Horizontal Drilling Method

The HDD horizontal drilling method represents a modern, efficient, and environmentally responsible solution for underground infrastructure development in Saudi Arabia. By enabling precise, trenchless installations beneath critical assets, HDD supports the Kingdom’s growing demand for reliable utility and pipeline networks.

With DTC, clients gain a trusted partner that understands Saudi Arabia’s ground conditions, regulatory landscape, and infrastructure challenges. Across Dammam, Al Khobar, and the wider Eastern Region, DTC delivers HDD horizontal drilling solutions that combine engineering excellence with safe, efficient project execution.
